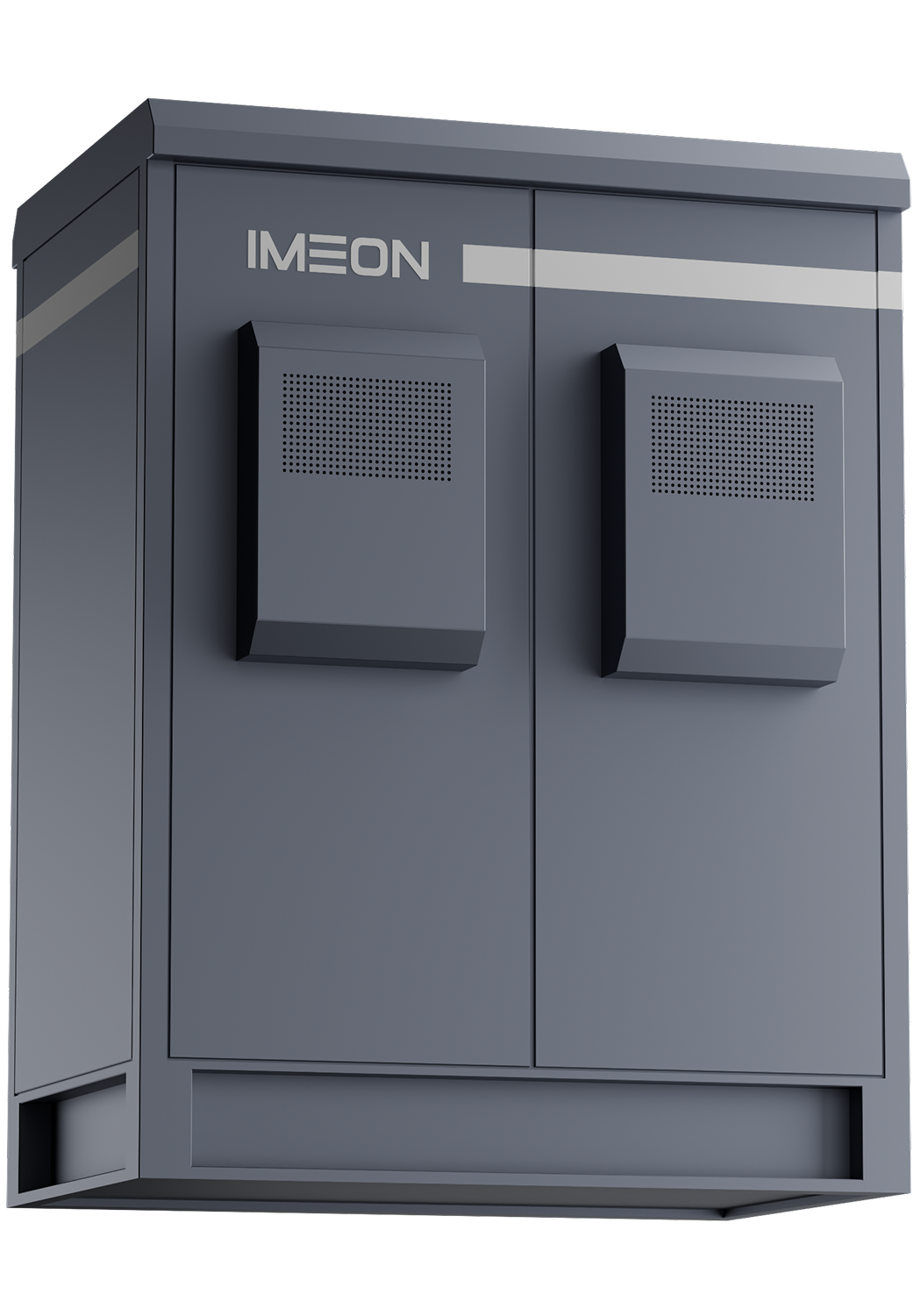

IMEON X-trem ESS

X-Trem ESS is an all-in-one system for outdoor installation. It is perfectly suited to extreme weather conditions and integrates all the components required for the optimal operation of a solar self-consumption system in a single cabinet. Available for power ratings from 18 kW to 36 kW and scalable, IMEON X-Trem ESS can be used for remote site electrification and for installations connected to the public electricity grid.

  • PV power from 24 kWp to 48 kWp
  • Stored energy from 38.4 kWh to 86.4 kWh
  • Paralleling of up to 6 units
  • Warranty up to 20 years
  • Ultra-simplified installation

Modular

For installations from 27 kW up to several MW, IMEON ENERGY can study several tailor-made solutions to meet specific demands. The proposed solutions can meet different types of needs: electrification of isolated sites, solar installations for self-consumption with batteries (connected to the grid), peak-shaving, retrofit of existing solar installations, etc… Do not hesitate to contact us to explain your needs.

Extreme environments

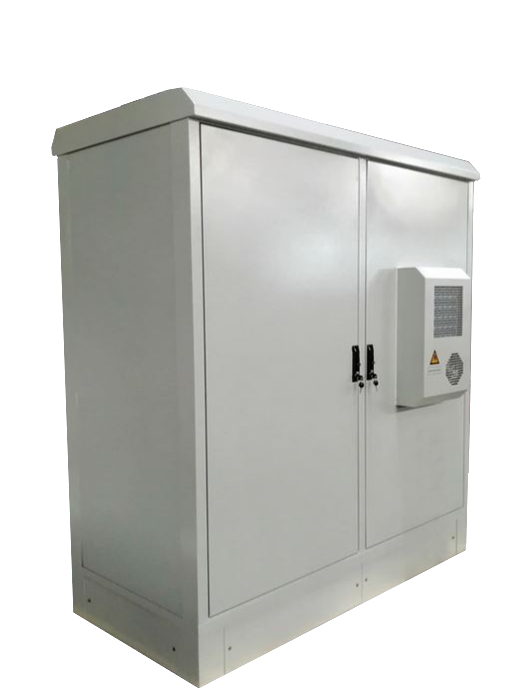

X-Trem ESS, developed by IMEON ENERGY’s R&D teams, is an “all-in-one” solution integrated in an air-conditioned cabinet allowing implementation in places with challenging climatic or environmental conditions (salt air, dust, heat). The optimal temperature maintenance system allows the power electronics and batteries to be used in adequate conditions to optimize the life of the various components of the solution.

OS. One

IMEON ENERGY’s X-Trem ESS solution, dedicated to solar applications involving energy self-consumption with the use of batteries, integrates the OS. ONE operating system. Thanks to its intuitive interface, the configuration of the complete system is ultra-simplified. The installer can access and change parameters such as the priorities for the use of solar energy and the battery’s permitted depth of discharge quickly and intuitively. OS. ONE can be accessed from a computer, tablet or smartphone via WiFi or Ethernet.

Technical Specification IMEON X-Trem ESS

Download

X-Trem 18

X-Trem 27

X-Trem 36

GRID

Nominal Power

18 kW

27 kW

36 kW

Voltage / Frequency

3/N/PE, 230/400 Vac / 50 Hz, 60 Hz

Smart Meter

100 A (Optional extension possible)

Grid services

Frequency regulation / Voltage regulation / Peak Shaving

SOLAR

Max. installed power

24 kWc

36 kWc

48 kWc

Number of MPPT entry(s)

4 6 8

Voltage range MPPT

380 – 750 Vdc

380 – 750 Vdc

380 – 750 Vdc

Max. current

13 A

13 A

13 A

Max. voltage

850 Vdc

850 Vdc

850 Vdc

BATTERY

Cell type

Lithium Iron Phosphate (LiFeP04)

Stored energy

38.4 kWh

57.6 kWh

76.8 kWh

Voltage range

45- 54 Vdc

45- 54 Vdc

45- 54 Vdc

Max. load power

18 kW

27 kW

36 kW

Recommended current

0.5 C

Max. load capacity

93 %

Battery charging

Configurable

Battery discharge

Configurable

Number of cycles*

6000

BACK-UP

Availability

Optional

Transfer time

2 s

Nominal power

18 kW

27 kW

36 kW

Voltage / Frequency

3/N/PE, 230/400 Vac, 50 Hz, 60 Hz

Rated current (per phase)

26 A

39 A

52 A

ELECTRICAL PROTECTIONS

Grid

Differential circuit breaker, Lightning arrester

Solar

Disconnector(s), fuse(s), lightning arrester(s)

Battery

DC circuit breaker

Back-up

Earth leakage circuit breaker, source selector switch

GENERAL SPECIFICATIONS

Protection class

IP 55 (outdoor or indoor installation)

Dimensions (mm)

1150*1200*1300mm

1150*2280*1300mm

1150*22800*1300mm

Weight

810kg

1280kg

1530kg

Technology

TL (without transformer)

Communication

CAN / Dry contact / Modbus / ETH / LTE option / Over-The-Air update

Terms and conditions of use

Humidity: 0 to 100 %, Temperature: -30 to + 60°C

Warranty

10 years*/ Extension to 20 years (optional)
