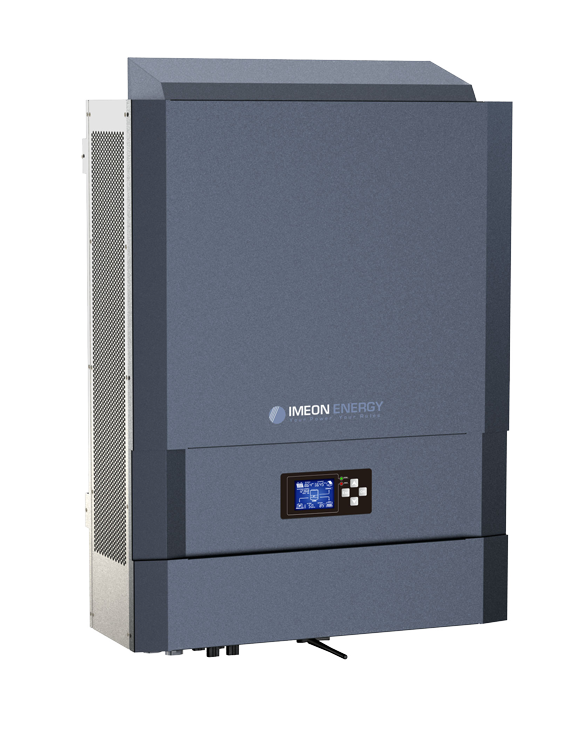

Hybrid inverter IMEON 9.12

IMEON 9.12, the three phase hybrid solar inverter is dedicated to three-phase photovoltaic systems for self-production with storage. This solar hybrid inverter with its rated power of 9kW is well suited for a home, an industrial or an apartment building. It works in all configurations: Smart-Grid / Off-Grid / Back-Up / On Grid.

  • Photovoltaic power from 4 to 12 kWp
  • Storage capacity from 5 to 100 kWh
  • Integrated WiFi and Web server.
  • Lithium-Ion batteries compatibility.
  • Warranty up to 20 years

A.I. INSIDE

Featuring an embedded artificial intelligence working through machine learning algorithms IMEON learns, predicts and anticipates! Choosing a photovoltaic IMEON 3.6 single-phase hybrid inverter is believing in the future.

Tout en un
All in one!
A self-consumption photovoltaic installation aims to meet, partially or fully, the energy consumption needs of…
stockage autonomie
More independent
Thanks to their open architecture, the IMEON hybrid inverters for self-consumption give users and installers…
sécurité
More secure
IMEON is probably the most secure PV inverter on the market. IMEON informs the user…
adaptable
More adaptable
Unlike vast majority of the inverters on the market, the IMEON photovoltaic inverter is a…
flexibility
More flexible
The IMEON photovoltaic inverter is the most flexible on the market: self-consumption, back-up, isolated site,…
connexion wifi
More connected
IMEON hybrid inverter has all the characteristics of a connected device, giving you the ability…

OS. ONE

Setting up an IMEON inverter for your autonomous home is a breeze thanks to the IMEON ENERGY OS. ONE interface: using a web browser, you can modify the usage priorities of solar energy and solar battery in a few clicks. Accessible via WiFi or via the Ethernet port of the IMEON solar inverter, the interface works on computers, tablets and smartphones.

Accessories for imeon 9.12

IMEON 9.12 three phase hybrid inverter is packaged with a range of accessories as well as reliable and secure connectors meant to simplify the installation. Robust and practical, these accessories contribute to the high quality of our inverters.

connecteur-RST-triphase

RST connector for IMEON 9.12

connecteur-batterie

Battery connector IMEON 9.12

connecteur-MC4

MC4 connectors

smart-meter-triphase

Three-phase smart meter

Download your favorite apps!

Imeon Energy is constantly developing applications to help you make the most of the capabilities of your hybrid solar inverter. These applications will allow your IMEON to continuously stay up to date with the latest technologies.

With IMEON, you will be surprised by the possibilities of your inverter!

Imeon app multistacking
Imeon app phase meter correction
Imeon app DRED
Imeon app smart charge
Imeon app forecast consumption
Imeon app MonoOnTri
Imeon app consumer identification
Imeon app wifi manager
Imeon app current smoother
Imeon app battery cycle
Imeon app weather coupling
Imeon app dynamic cut off

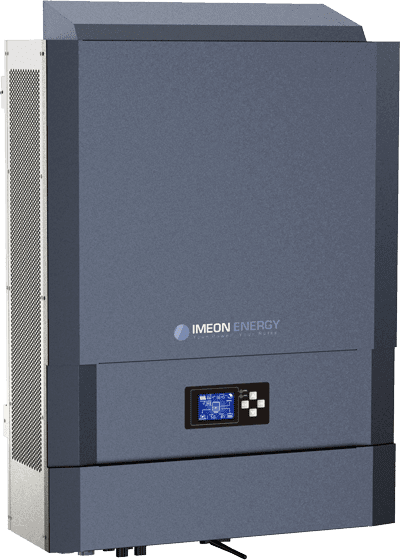

Technical specifications for IMEON 9.12

Download

GRID AC (ON-GRID & OFF-GRID)

  • Rated output power

    9000 W

  • Maximum output power (3 sec)

    12000 W

  • AC voltage / Frequency (input & output)

    3/N/PE; 230/400 Vac (±15 %) / 50 Hz, 60 Hz (±5 Hz)

  • Nominal output current

    13 A / phase

  • Maximum input current

    17,5 A / phase

  • Feed in to grid

    Programmable (yes by default)

  • Energy consumption priorities

    Programmable (PV / Storage / Grid)

SOLAR INSTALLATION

  • Maximum input power

    Up to 12 000 Wp (1)

  • Number of MPPT inputs

    2

  • MPPT voltage range

    380 V – 750 V

  • Maximum input current

    2 x 18 A

  • Maximum input voltage

    850 V

  • Maximum efficiency

    DC to AC : >95,5% (94,5% EU)

BATTERY & CHARGE

  • DC nominal voltage

    48 Vdc

  • Maximum discharge current

    200 A

  • Maximum charging current

    160 A

  • Type of batteries

    Lead-acid, Lithium(2)

  • Charging curve

    3-phase (Bulk / Absorption / Float)

  • Maximum efficiency

    PV -> batterie : >94% / Batterie <–> AC : >93%

  • Battery charge

    Programmable (threshold / timing: multiple range by AC Grid)

  • Battery discharge

    Programmable ( 2 thresholds according to grid availability)

GENERAL

  • Dimensions (w x h x d)

    580 x 800 x 240 mm / 22.85 x 31.5 x 9.45 inch

  • Protection category

    IP 20 (indoor installation)

  • Weight

    46 kg

  • Technology

    TL (transformless)

  • Operating mode

    Smart grid / Back up – UPS / Off grid / On grid / VPP Ready

  • OS / Processor

    OS: Linux Debian 8.7 Jessie – CPU: ARM Cortex (Texas Instrument) 32 bits
    RAM : 8 GO of storage – Artificial Intelligence Inside – IOT Ready

  • I / O Connectors

    Wifi 802.11 b/g/n 2.4 GHz – 2 USB 2 – 1 Ethernet IP
    1 CAN bus – 2 RS485 – 1 relay 230 V 16A
    4 analog inputs : 1 temperature probe – 3 electrical measurements

  • Conditions of use

    Humidity level: 0 to 90% without condensation
    T°C : -20 to + 50°C, degressive power >40°C (15W/°C)

  • Compliance

    EN 62109-2 / EN 62109-1 / EN 62040-1 / DIN V VDE V 0126-1-1 (+VFR2013) / VDE-AR-N 4105 / EN 50438 DIN VDE V 0124-100 / Synergrid C10/11 / TF3.2.1 / AS4777.2 / AS4777.3 / NRS 097-2-1 / G83 / RD 1699

  • Guarantee

    10 years (3) / Extension to 20 years (optional)
